How to add Appliance and Image on GNS3

GNS3

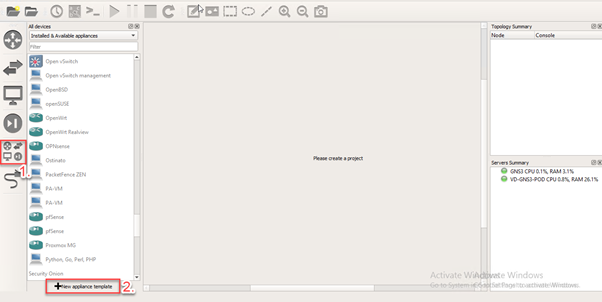

Step 1: Click on “browse all devices” then select “new appliance template button”.

image1-Apr-17-2024-11-25-05-2736-AM

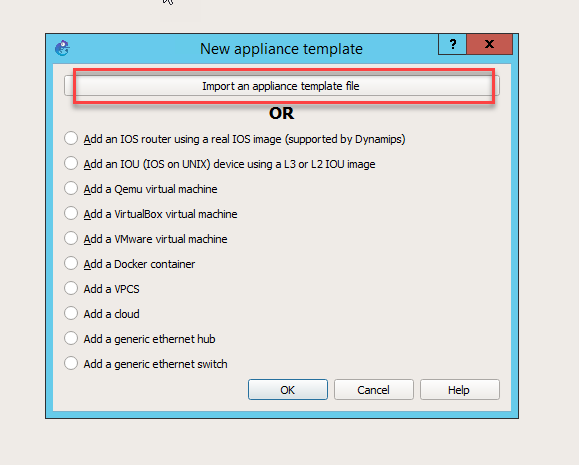

Step 2: Select “import an appliance template file”.

image2-Apr-17-2024-11-25-20-0979-AM

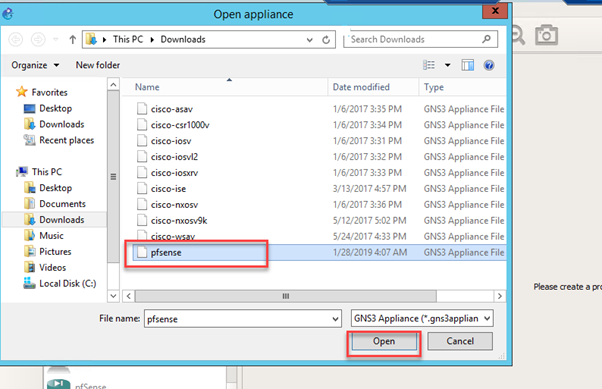

Step 3: Select the appliance file. Then click next.

image3-Apr-17-2024-11-25-35-7251-AM

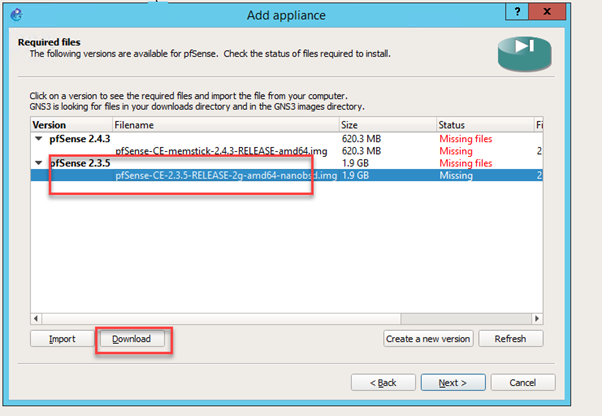

Step 4: Select over the existing file and then click on the download option.

image4-Apr-17-2024-11-25-53-6243-AM

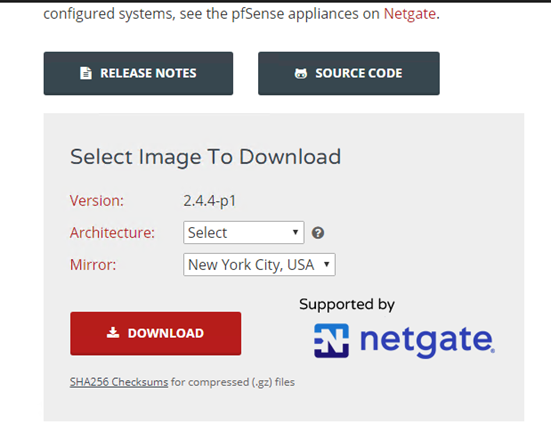

Step 5: Once you click the download option it redirects you over this web page. Then download the image.

image5-Apr-17-2024-11-26-10-0623-AM

Step 6:  Create the version of the downloaded file then click over the import option.

image6-4

Step 7: Select the downloaded image file from the folder.

image7-3

image8-3

Step 8: Once the file is imported successfully select next.

image9-3image10-3

Step 9: Finally, you can see the image in the installed appliance tab.

image11-3
